What are hydraulic cylinders used for?
Hydraulic cylinders find applications across various industries due to their ability to generate controlled linear force and motion. Some common uses include:
Construction Equipment: Hydraulic cylinders are integral in construction machinery for tasks like lifting and lowering heavy loads, extending and retracting arms, and controlling the movement of equipment.
Manufacturing Machinery: They play a crucial role in industrial automation, powering presses, stamping machines, and other equipment involved in shaping and forming materials.
Agricultural Machinery: Hydraulic cylinders are used in agricultural equipment for functions like raising and lowering implements, adjusting the angle of blades, and controlling the movement of various components.
Aerospace Industry: Hydraulic cylinders are employed in aircraft for functions like controlling landing gear, wing flaps, and other movable parts.
Automotive Industry: They are used in vehicle brake systems, steering mechanisms, and convertible top mechanisms.
Material Handling Equipment: Hydraulic cylinders are essential in forklifts, cranes, and other material handling equipment for lifting, lowering, and positioning loads.
Mining Equipment: In mining applications, hydraulic cylinders are utilized for tasks such as moving and positioning heavy mining equipment and controlling the operation of drilling rigs.
Marine Industry: Hydraulic cylinders are used in ship and offshore platform systems for functions like controlling rudders, hatch covers, and various mechanisms.
Oil and Gas Industry: Hydraulic cylinders play a role in drilling equipment and various hydraulic systems used in the extraction and processing of oil and gas.
Civil Engineering: In civil engineering projects, hydraulic cylinders are employed in systems such as dam gates, bridge mechanisms, and construction equipment.
The versatility of hydraulic cylinders makes them indispensable in a wide range of industries, contributing to efficiency, precision, and controlled movement in diverse applications.
Product Description
Feature:
1)Designed and manufactured according to JIS-B8367 standard
2)Four-rod design, versatility, ease of maintenance.
3) Variety of installation types for customers to choose.
4) All seals adopt foreign famous brand specifications.
HC2--A--70-- --SD--C--100--200ST-- -- -- -- -- --
1) 2) 3) 4) 5) 6) 7) 8) 9) 10) 11) 12) 13)
| HC2:Tie-Rod Hydraulic Cylinders |

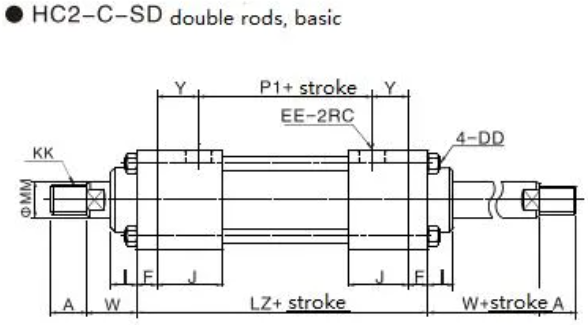

| 1) Type | A:doubling acting C:double rods
D:double rods with stroke alignment |
| 2)Working pressure | 70:70kgf/cm² 140:140kgf/cm² |
| 3)Performance blank:(standardusage) | H:with bellow
J:with heat/ erosion proof(the highest temperature is 200℃) |
| 4)Mounting type | SD/FA/FB/CA/CB/LA/LB/TA/TC |
| 5)Rod size | C: C class B:B class note: 1standard:HC-70+C class rod
2.Standard:HC-140+B class rod
3. Please specify when HC-70+B class rod or HC-140+C class rod
|
| 6)Bore(mm) | 32,40,50,63,80,100,125,150,180,200,224,250 |
| 7)Stroke(mm) | Max.stroke=Max length of stroke-Min. length of stroke |
| 8)Cushion blank: | no cushion B:Cushion on bothends R: Cushion on rod cover H:Cushion on head cover |
| 9)Connectors Y | Y :Yconnector I:Iconnector |
| 10)Stroke alignment | |
| 11)Port position | |
| 12)Cushion position | |
| 13)Oil seal material blank | NBR(standard usage),2: PU 3:FPM |

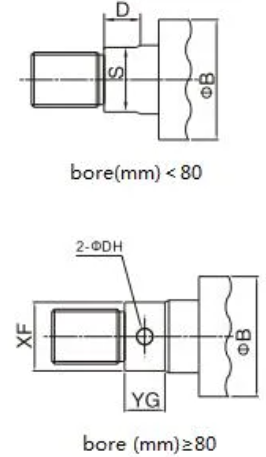

External dimensions
| Bore | DH | CF | YG |
| 80 | 10 | 79 | 20 |
| 85 | 10 | 84 | 20 |
| 90 | 10 | 89 | 20 |
| 100 | 12 | 99 | 24 |
| 112 | 12 | 109 | 24 |
| 125 | 12 | 124 | 24 |
| 140 | 12 | 139 | 24 |

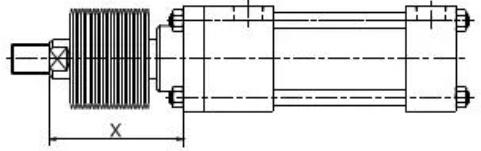

With below(HC2-A-H)
Specifying the needed material while ordering
(1)N:NBR
(2)V:F≤200℃
| Bore | X |
| 32.40.50 | 1/3.5xstroke+45 |
| 63.80.100 | 1/4xstroke+55 |
| 125.150180.200 | 1/5xstroke+65 |
| 224.250 | 1/6xstroke+80 |
Application:
3D printer / Packing machine / Unstandard machine / Mechanical arm / Mask machine/CNC machine/
Chip mounter/Medical equipment/Automation

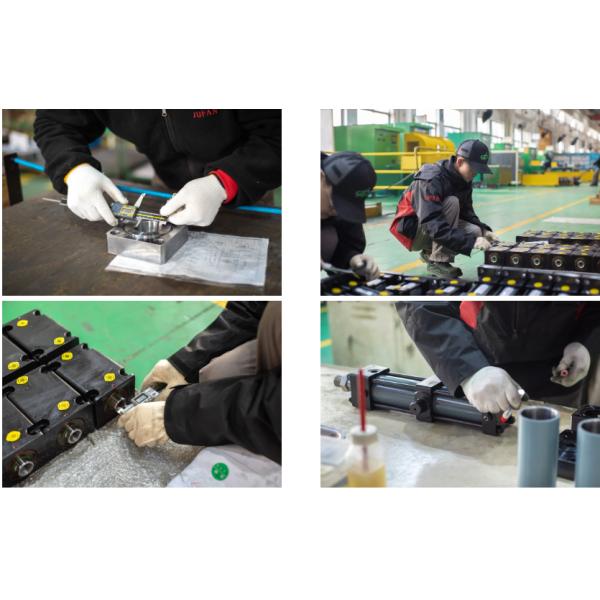

Factory:
FAQ
Q1: Are you a manufacturer or a trading company?
We have our own factory, so we can provide the best price as well the first service.
Q2: Do you accept customization or Non-standard products?
Yes, we can customize products as the customers required.
Q3: What is your MOQ?
MOQ depends on our clients needs. Besides, we welcome trial order before mass production.
Q4: How long is your delivery time?
Normally, the delivery time is 7 days if we have stock. If we don't have stock, it needs 15-30 working days. And it also depends on the quantity and requirements of products.
Q5: What are your payment terms?
T/T. If you have any questions, please feel free to contact us.
